The equipment (main unit/micromotor/pedal) is guaranteed for 3 years.

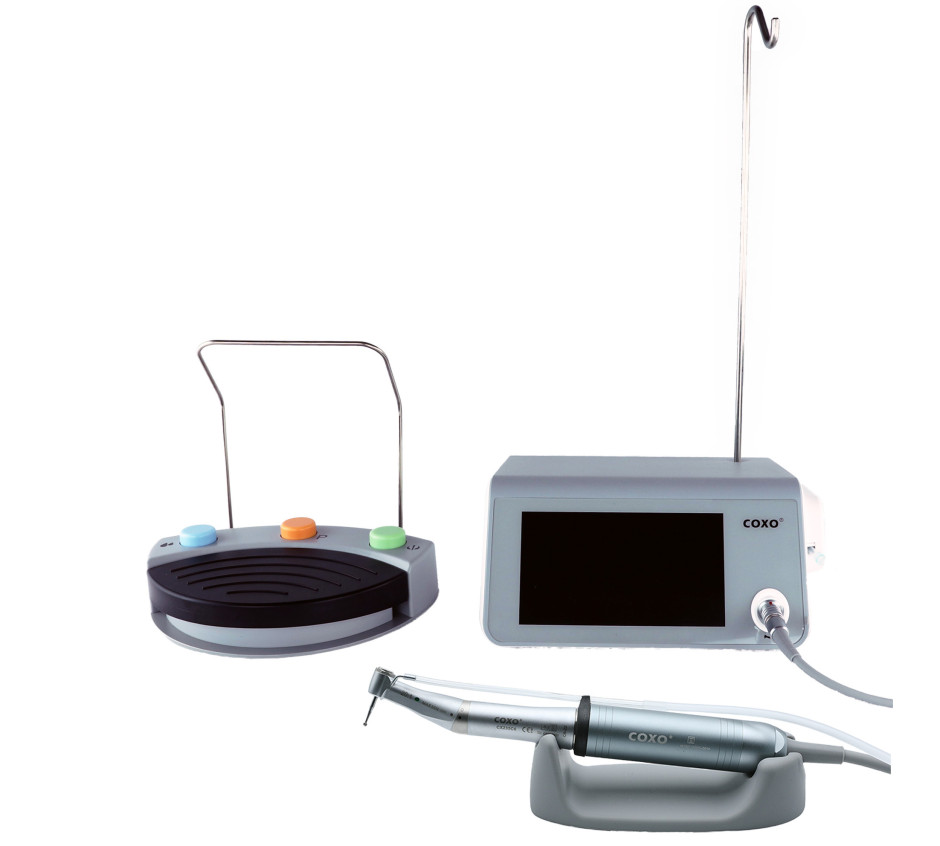

The motor has an implantology mode AND a surgery mode.
The motor is supplied with two implantology/surgery contra-angles, fibre-optic with external irrigation. A green contra-angle (C6-22 ratio 20:1) and a red contra-angle (C7-5S ratio 1:5).
In implantology mode, there are five different programmes of up to eight steps. All programmes can be configured by modifying the steps, which can be added, deleted, or reordered in the sequence.
In surgery mode, one programme of eight steps.
The motor can operate with contra-angles of different ratios, thus adapting the output speed of the contra-angle according to the ratio of the selected contra-angle installed on the machine. The managed ratios are;
In implantology mode 16:1, 20:1, 27:1, 32:1, 64:1. In surgery mode; 20:1, 16:1, 10:1, 4:1, 1:1, 1:2, 1:3, 1:4.2, 1:5
The working torque and the contra-angle speed are adjustable at each step of the implantology mode programmes.
In surgery mode, only the speed is adjustable.
The motor is delivered in a sturdy aluminium case, perfectly protected by a thick foam lining.
The motor features a digital touchscreen on its main unit. Simply touch the screen to access the various functions.
The micromotor is equipped with an LED light. The cable connection port of the micromotor to the main unit is metallic, reinforced compared to the previous generation.
The motor has a saline pump with adjustable flow rate. Five flow rates are selectable (from zero to 4).
The motor has a "reverse" rotation function.
The motor is equipped with a WIRELESS pedal which allows you to;
- Start the rotation of the contra-angle progressively according to the pressure applied to the pedal. However, if you wish to reach maximum speed immediately, simply press the pedal all the way down.
The pedal also allows you to;
- Select a programme.
- Adjust the flow rate of the saline pump.
- Change the direction of rotation of the contra-angle.
These functions can also be adjusted via the main unit.
The motor can also operate with a wired foot pedal.
A "measured" torque scale is displayed on the digital screen in the form of a line of coloured dots (ranging from green to orange then red). The more dots lit up tending towards red, the closer the measured torque is to the torque set for motor stop. You can thus visualise the effort exerted by the contra-angle.
With the motor stopped, the maximum rotation speed of the contra-angle can be adjusted. When the pedal is pressed, the maximum speed display disappears and the actual rotation speed at the contra-angle output is shown. You can thus adjust the rotation speed (indicated on the screen) by pressing the pedal more or less, but without ever being able to exceed the pre-set speed.
The motor allows an external backup (on a USB key) of the work carried out.
The motor is supplied with five irrigation lines.
The contra-angle, the electric motor and its cord are autoclavable.
The motor is very simple and intuitive to use.
The implantology motor is CE certified.
Equipment guaranteed for three years, parts and labour included, in accordance with our Terms and Conditions (see the "Warranty" section), except for contra-angles which are guaranteed for one year.
Instructions in French, perfectly understandable.
WARNING; important information relating to the sterilisation of the micromotor.
BEFORE PUTTING THE MICROMOTOR AND ITS CABLE IN THE AUTOCLAVE;
Make sure to screw the screw/plug into the "nose" of the motor AND carefully check
the condition of the O-ring seal.
Without this, moisture from the autoclave will enter the motor body and
condense upon cooling, leaving liquid (water) in contact with the
electrical components of the motor, CAUSING ITS DESTRUCTION.....
