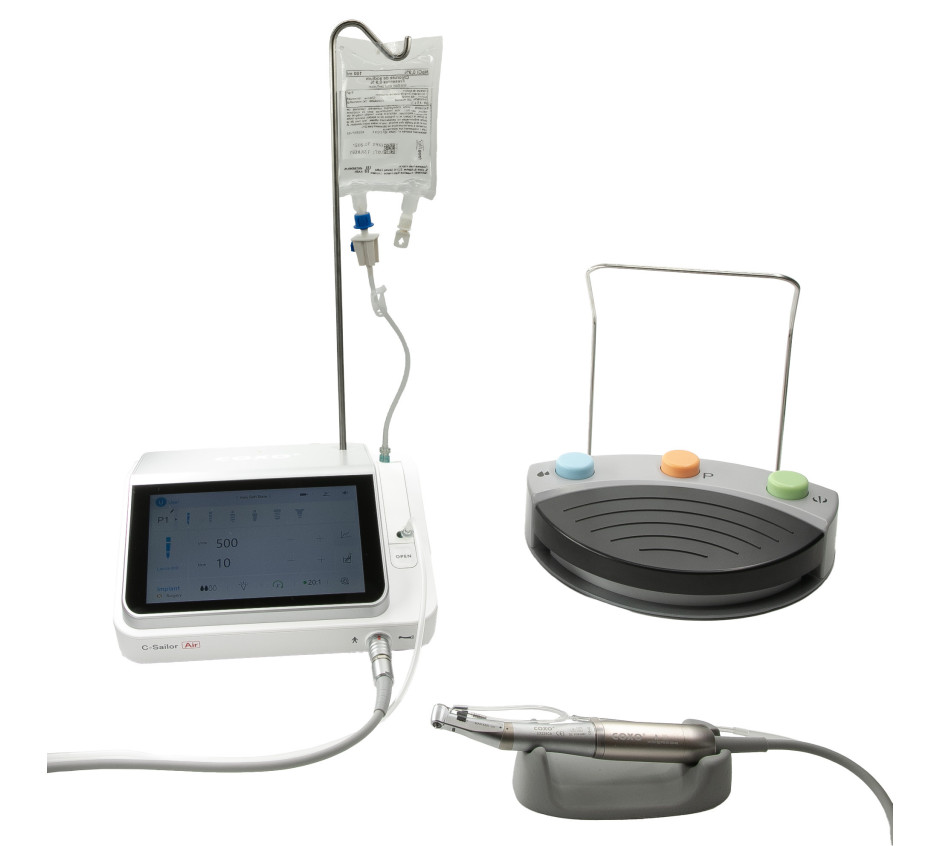

IMPLANTOLOGY MOTOR C SAILOR AIR - REF:806

The equipment (main unit/micro motor/foot pedal) is guaranteed for 3 years.

The motor has an implantology mode AND a surgery mode.

The motor is supplied with two implantology/surgery contra-angles, fibre-optic with external irrigation. A green contra-angle (C6-22 ratio 20:1) and a red contra-angle (C7-5S ratio 1:5).

In implantology mode, there are five different programmes of up to eight steps. All programmes are configurable by modifying the steps, which can be added, removed, or reordered in the sequence.

In surgery mode, a programme of eight steps. Plus an electric micro motor function.

The motor can operate with contra-angles of different ratios, thereby adapting the contra-angle output speed according to the ratio of the selected contra-angle installed on the machine. The ratios supported are;

In implantology mode 16:1, 20:1, 27:1, 32:1, 64:1. In surgery mode; 1:2, 1:3, 1:3.3 1:4.2, 1:5

In electric micro motor mode - High speed; 20:1, 16:1, 10:1, 4:1, 1:1 - Low speed; 1:1, 4:1, 10:1, 16:1, 20:1,

The working torque and the contra-angle speed are adjustable at each step of the implantology mode programmes.

In surgery mode, only the speed is adjustable.

The motor is delivered in a sturdy aluminium case, perfectly protected by thick foam padding.

The motor's main unit features a touch digital screen. Simply touch the screen to access the various functions.

The micro motor is equipped with an LED light. The cable connection socket between the micro motor and the main unit is metallic, reinforced compared to the previous generation.

The motor has a saline pump with adjustable flow rate. Five flow rates are selectable (from zero to 4).

The motor has an anti-drip function that can be activated or not. When the motor stops working, the pump briefly rotates in reverse to "remove" a small amount of product from the end of the irrigation line, thus preventing it from "dripping".

The motor has a "reverse" rotation function.

The motor is equipped with a WIRELESS foot pedal that allows you to;

- Start the rotation of the contra-angle progressively according to the pressure applied to the foot pedal. However, if maximum speed is required immediately, simply press the pedal fully.

The foot pedal also allows you to;

- Select a programme.

- Adjust the saline pump flow rate.

- Change the direction of rotation of the contra-angle.

These functions can also be adjusted via the main unit.

The motor can also operate with a wired foot pedal.

A scale of the "measured" torque is displayed on the digital screen in the form of a line of coloured dots (ranging from green to orange then red). The more illuminated dots there are towards red, the closer the measured torque is to the torque set for motor stop. This allows the effort exerted by the contra-angle to be visualised.

With the motor stopped, the maximum rotation speed of the contra-angle can be adjusted. When the foot pedal is pressed, the maximum speed disappears and the actual rotation speed at the contra-angle output is displayed. This allows the rotation speed (shown on screen) to be adjusted by pressing the pedal more or less, but never exceeding the pre-set speed.

The motor allows an external backup (on a USB drive) of the work carried out.

The motor has a settings function for three different practitioners, each practitioner being able to configure their settings independently.

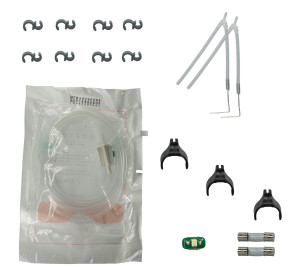

The motor is supplied with five irrigation lines.

The contra-angle, the electric motor and its cable are autoclave sterilisable.

The motor is very simple and intuitive to use.

The implantology motor is CE certified.

Equipment guaranteed for three years, parts and labour included, in accordance with our T&Cs (see the "Warranty" section), except for the contra-angles which are guaranteed for one year.

Instructions in French, perfectly understandable.

CAUTION; important information regarding sterilisation of the micro motor.

BEFORE PASSING THE MICRO MOTOR AND ITS CABLE THROUGH THE AUTOCLAVE;

Screw the screw/plug firmly into the "nose" of the motor AND carefully check
the condition of the sealing O-ring.
Without this, moisture from the autoclave will enter the motor body and
condense upon cooling, leaving liquid (water) in contact with the electrical
parts of the motor, CAUSING ITS DESTRUCTION.....
