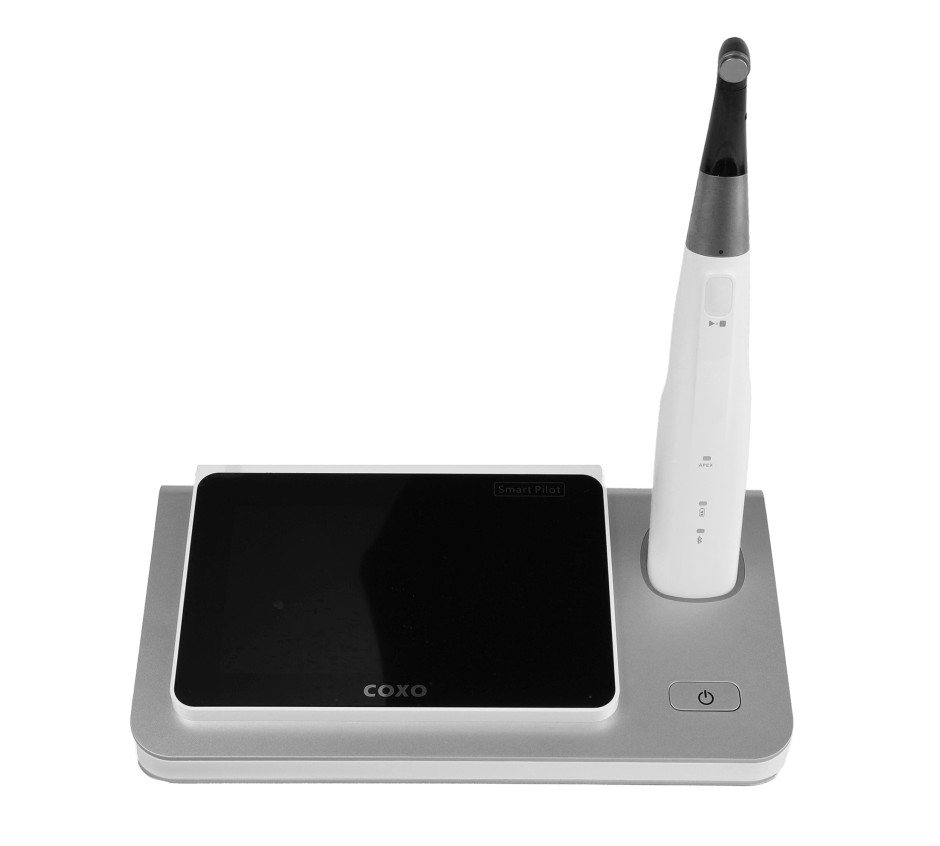

This motor/locator features all the latest technologies in endodontic equipment.
The device has three distinct operating modes;
-Apex locator only, with a function to "move" the apical zone to be located. Digital display of the working length, plus audible assistance.
-Endodontic motor only.
The device operates in continuous or reciprocal rotation mode.
IN CONTINUOUS ROTATION MODE,
The torque and rotation speed are adjustable. The adjustable torque and speed values are pre-stored in several distinct programmes depending on the brand and model of the file used. These factory pre-stored values can however be modified and saved if desired.
These programmes are called sequentially.
There are also "free" programmes allowing the torque and speed to be set independently of the brand and/or model used.
"Reverse" function, which allows the contra-angle to be operated in reverse.
IN RECIPROCAL ROTATION MODE,
The motor manages CLASSIC reciprocal rotation, i.e. for files working in an anti-clockwise direction (30° anti-clockwise and 150° clockwise) BUT ALSO FOR NEW RECIPROCAL FILES WORKING IN A CLOCKWISE DIRECTION, i.e. alternating rotations of 150° anti-clockwise and 30° clockwise. The advantage of these new files is that you can work with the same file in continuous rotation or reciprocal rotation.
In reciprocal rotation mode, it is not possible to adjust torque and speed.
- In combined mode; Endodontic motor coupled to the apex locator.
The motor operates at the displayed setting characteristics, and the locator locates at the level of the flashing bar.
The particularity of this operating mode is that, when the tip of the file reaches the region of the stenosis of the root canal, it slows down and then automatically reverses its rotation when it reaches the apex or the set position of the bar.
The resumption of the initial rotation speed will occur when the file moves away from the localisation zone.
The head of the contra-angle is removable, autoclave-sterilisable, and can be mounted on the handle in different angular positions. The contra-angle has a light.
The motor is started at the handle.

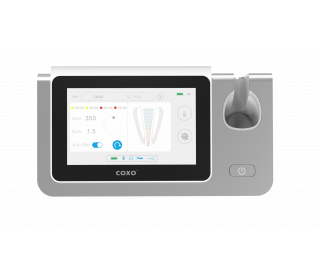

Features a colour digital screen on which all information is displayed: speed, selected torque, direction of rotation, and visualisation of the file penetration into the root canal.
The device has stored in its memory the operating characteristics (continuous rotation (with torque and speed) or reciprocal) of the most well-known file brands as well as various models. You can also save your own operating characteristics for files.
Equipment guaranteed for two years, parts and labour included, in accordance with our General Terms and Conditions (see the "Warranty" section), except for the contra-angle and the electric handpiece, which are guaranteed for one year. The battery is guaranteed for six months.
User manual in French provided, very clear and detailed.
