The distinctive feature of dental electric micromotors is that they can only operate with an electronic circuit board specific to them. Thus, a Bien Air motor will not be able to run on the electronic circuit board of a Kavo or Sirona motor.... In addition to this, each brand has developed a power cord with its own specific connectors, which means that not only is the electrical system different from one brand to another, but so are the connectors.
Therefore, when you have a faulty electric motor, the only solution is to replace it with an equivalent from the same brand, or have it repaired. However, you must also first ensure that it is not the electronic circuit board that is malfunctioning.
The Coxo electric motor operates on the same principle. It has its own connectors and electronic circuit board.
In order to use the Coxo motor, the electronic control unit, the speed adjustment potentiometer and the motor cord must first be fitted into the dental chair.
This is a straightforward operation for those accustomed to it, but it requires dismantling the chair's console and involves an electrical connection..... Calling a professional is recommended.
The motor runs without brush contacts (brushless technology), features LED lighting and an internal spray.
Max speed 40,000 rpm
Max torque 3.5 N/cm
24-volt power supply

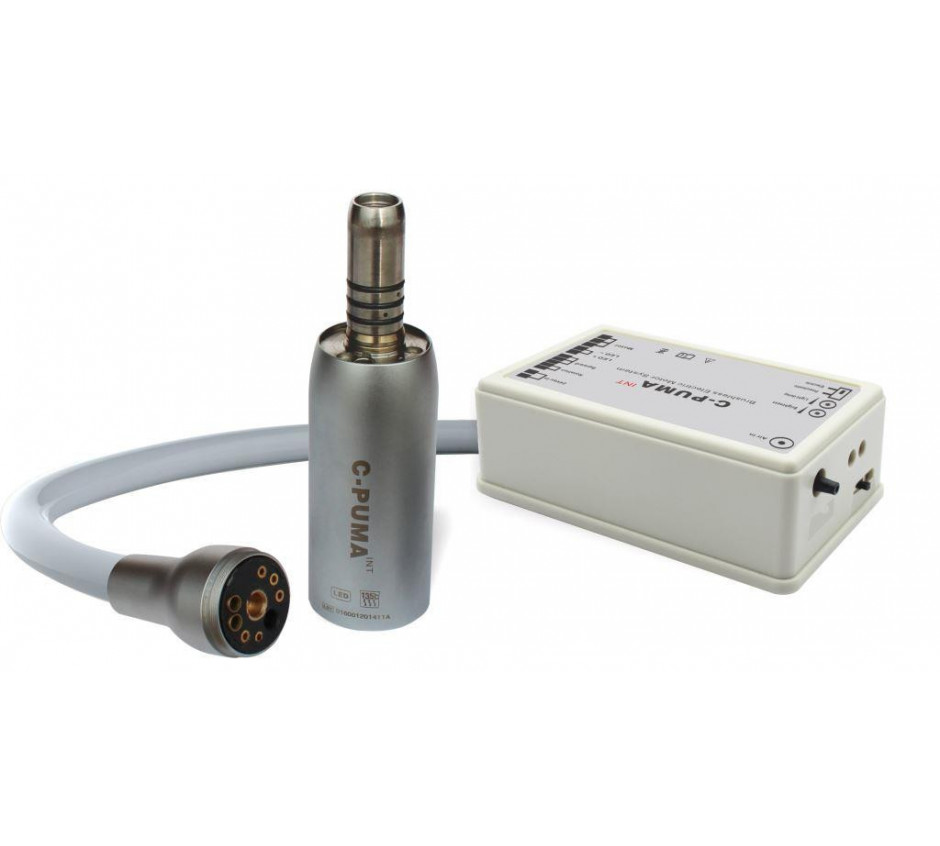

The motor is supplied with the electronic control unit, its 1.80-metre cord/flexible shaft, and the potentiometer for adjusting the motor speed.
The motor is autoclavable, at 135 °C max.
Parts and labour warranty; Motor 1 year, electronic control unit two years.
