CONTRA-ANGLE KIT FOR DIAMOND STRIP - Ref:239

The contra-angle is intended for stripping use, with a reciprocating motion, ratio of 4 to 1 (green ring).

The rotation speed must be below 10,000 rpm, otherwise the CONTRA-ANGLE WILL BE DESTROYED.

The contra-angle has no light and no internal irrigation.

The fitting of the strips is standard, tapered.

The strips can be positioned at 360° relative to the contra-angle head.

The strips are diamond-coated on both sides.

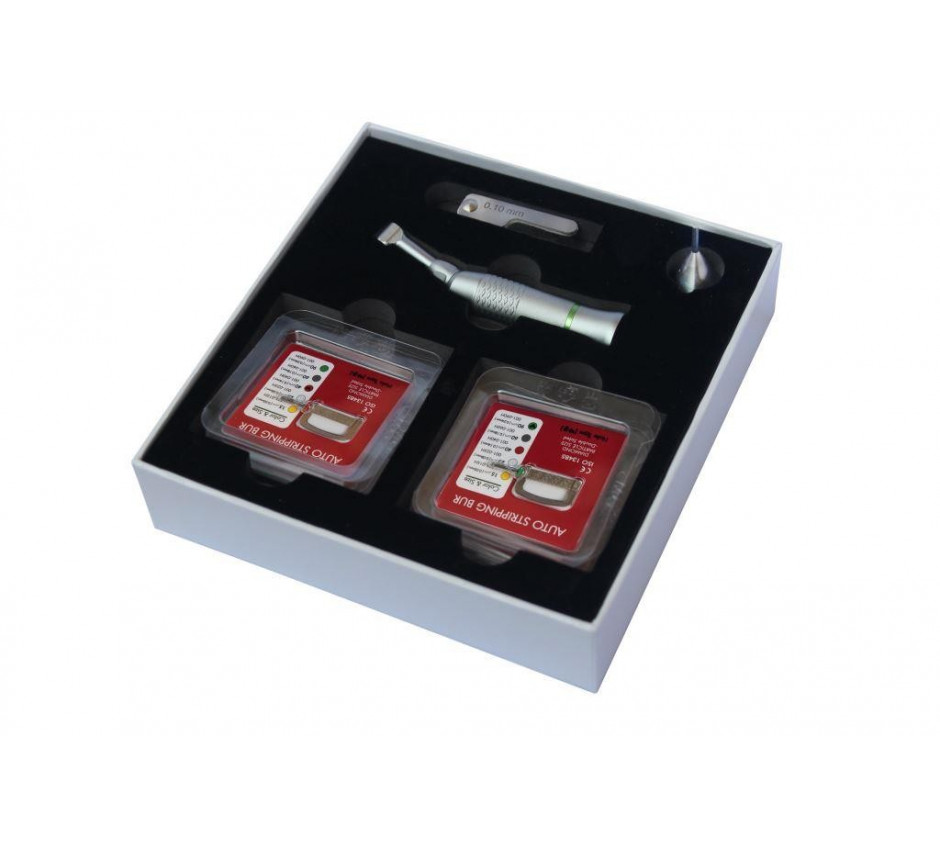

The kit includes the contra-angle, the shim set, and ten diamond strips of the following grit sizes and thicknesses ;

- 15 microns (colour code yellow) and thickness 0.05 mm, ISO code 001-015H. Quantity ; two.

- 25 microns (colour code white) and thickness 0.08 mm, ISO code 001-025H. Quantity ; two.

- 40 microns (colour code red) and thickness 0.14 mm, ISO code 001-40H. Quantity ; two.

- 60 microns (colour code purple) and thickness 0.18 mm, ISO code 001-060H. Quantity ; two.

- 90 microns (colour code green) and thickness 0.24 mm, ISO code 001-090H. Quantity ; two.

Equipment guaranteed for one year, parts and labour included, in accordance with our General Terms and Conditions (see the "Warranty" section).
